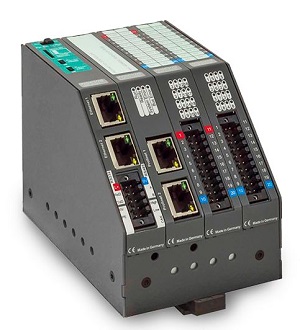

CPU 303T ProfiNet -1MB
Part No: CC303T-PNC-02
.
CPU 303T ProfiNet


Programmed by STEP7 or TIA Portal from Siemens or WinPLC7 from VIPA as a Siemens 315-2PNDP
DC 24V
1MByte work memory, 8MByte load memory, 48MByte visual HMI memory
2 slots available for I/O modules
SDCard slot,
real time clock,
4096byte I/O address area
512 timers (IEC timers unlimited)
512 Counters (IEC Counters unlimited)
2 x Ethernet interfaces, each separate or switch like CP343-1 from Siemens, PG, HMI, S7 Functions, Send/Receive, Modbus TCP
2 x ProfiNet interfaces.
PtP interface RS485 and RS232, ASCII, STX/ETX, 3964R, Modbus RTU
CANopen, CAN-Layer2


Supplied with Spring Terminal Front Connector

(Search Tags) S7300, S7-300, 300V, 6es7315-2ah14, 315-2pndp

Resource Download
Manual
http://www.automationwarehouse.com.au/
manuals/insevis/Manual_CompactPLC.pdf

First Steps with STEP7 from Siemens
http://www.automationwarehouse.com.au/
manuals/insevis/First_Steps.pdf

First Steps with WinPLC7
http://www.automationwarehouse.com.au/
manuals/insevis/First_Steps_WinPLC7.pdf

How to set the IP address from factory STEP7
http://www.automationwarehouse.com.au/
manuals/insevis/Set_IP_Address_STEP7.mp4

How to set the IP address from factory TIA Portal V14
http://www.automationwarehouse.com.au/
manuals/insevis/Set_IP_Address_TIA_V14.mp4


Alternative to Siemens:
6ES7 315-2EH14
