Panel-PLC 010.2 -11
Part No: PC1011P-0-03
.

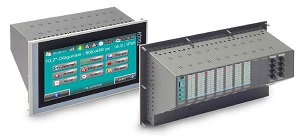

Insevis 10" HMI Panel with S7-300 PLC CPU integrated, 11 I/O slots

S7-Panel-PLC 10.2"�� flat / 11 periphery slots onboard

640kB work- and 24MB visualisation memory the INSEVIS-Panel-PLC with WVGA in 16:9 format.
The brilliant display is an eye catcher, large library of graphical objects make this panel a powerful but easy to create visualisation.
The integrated CPU-P includes onboard interfaces, Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP (Master, Slave).


Supplied with Spring Terminal Front Connector

Resource Download
Manual
http://www.automationwarehouse.com.au/
manuals/insevis/Manual_PanelPLC.pdf

First Steps with STEP7 from Siemens
http://www.automationwarehouse.com.au/
manuals/insevis/First_Steps.pdf

First Steps with WinPLC7
http://www.automationwarehouse.com.au/
manuals/insevis/First_Steps_WinPLC7.pdf

How to set the IP address from factory STEP7
http://www.automationwarehouse.com.au/
manuals/insevis/Set_IP_Address_STEP7.mp4

How to set the IP address from factory TIA Portal V14
http://www.automationwarehouse.com.au/
manuals/insevis/Set_IP_Address_TIA_V14.mp4


Alternative to Siemens:
6ES7 315-2EH14
(Search Tags) S7300, S7-300, 300V,
