Panel-PLC 010.1 ProfiNet
Part No: PC1010T-PNC-02
.

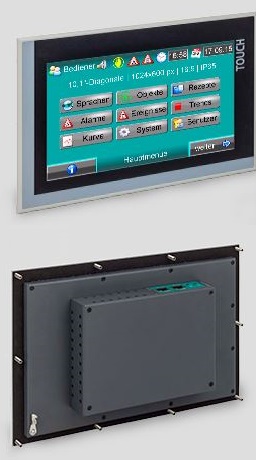

Insevis 10.1" HMI Panel with S7-300 ProfiNet PLC CPU integrated
S7-Panel-PLC flat / no periphery slots onboard
1MB work memory- and 48MB visualisation memory the INSEVIS-Panel-PLC with WVGA in 16:9 format.
The brilliant display is an eye catcher, large library of graphical objects make this panel a powerful but easy to create visualisation.
The integrated CPU-T includes onboard interfaces, ProfiNet, Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII)
10,1-display (1024x600 Pixel, 16:9-format, 65.000 colors) with resistive touch
Dimension front: 286x188mm (like PC1000), class of tightness: IP65, weight: ca. 1000g
Range of operation temperature: -20C...+60C
Periphery decentral expandable by Profinet, CAN, Modbus
Voltage supply: 24 (11...30)V DC
Current consumption: 350mA (typ.)...500mA (max. with Profinet)
Power dissipation: 8,5W (typ.)...12W (max. with Profinet)
Depth into switching cabinet: 48mm
Supplied with Spring Terminal Front Connector
Resource Download
Manual
http://www.automationwarehouse.com.au/
manuals/insevis/Manual_PanelPLC.pdf
First Steps with STEP7 from Siemens
http://www.automationwarehouse.com.au/
manuals/insevis/First_Steps.pdf
First Steps with WinPLC7
http://www.automationwarehouse.com.au/
manuals/insevis/First_Steps_WinPLC7.pdf
How to set the IP address from factory STEP7
http://www.automationwarehouse.com.au/
manuals/insevis/Set_IP_Address_STEP7.mp4
How to set the IP address from factory TIA Portal V14
http://www.automationwarehouse.com.au/
manuals/insevis/Set_IP_Address_TIA_V14.mp4
