VIPA 200V - Digital Output module

Digital Output module for the VIPA 200V range of PLC's and remote I/O modules.  By adding a CPU to these I/O cards gives you a very powerful PLC system.

Or  by adding a remote I/O module eg: PROFIBUS®, DeviceNet®, CANbus, InterBus you have a very flexible distributed I/O solution.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

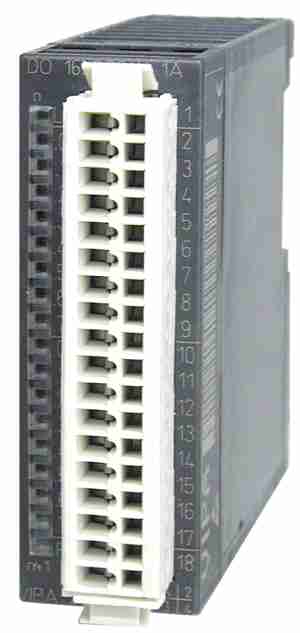

VIPA, System200V 16-channel digital output cards.

Technical Data -1BH10 -1BH20
Number of outputs 16 16
Output data 2 Byte 2 Byte
Nominal load voltage DC24V DC24V
Output current per channel 1 Amps 2 Amps
Supply voltage int. bus 5V 5V
Current consumption int. bus 100mA 100mA
Potential Separation in groups of 16 16
Diagnostic LED for short circuit and overload indication.
Maintenance free overload and short circuit protection with thermic shutdown


Order Number Type
VIPA 222-1BH10 DO 16xDC 24V 1A
VIPA 222-1BH20 DO 16xDC 24V  2A
