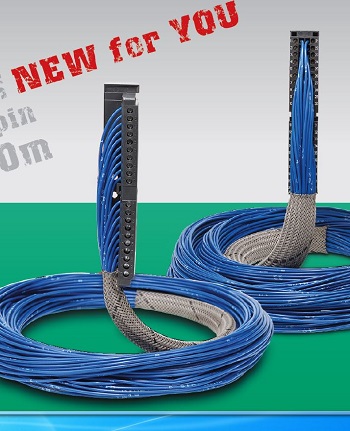

40 pin wired loom 3m
Part No: AUTW 922-6BD20
.
S7-300 Front connector screw terminals with 3m wiring loom pre terminated

Very tidy appearance as PLC Doors will close correctly which can be a problem when self wiring S7-300 type front connectors
Saves time of wiring, still using standard front connector with screw terminals so it can be maintained at a later time if need be.
Each core number printed along entire length of loom

You may need to order this connector with every 32 point digital card and every analog card, as front connectors are sold as separate items not included with the I/O card.

VIPA 392-1AM00, Helmholz 700-392-1AM10B alternative.
