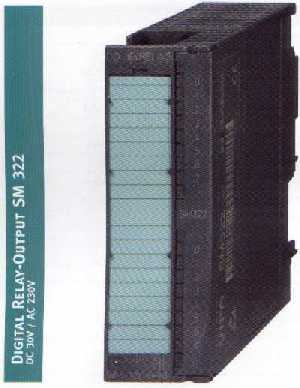

SM322 dig_out 16xRelay
Part No: VIPA 322-1HH00
.
322-1HH01
SM322, DO 16xRelay potential isolated.

pin-compatible front connector with Siemens 6ES7 322-1HH00-0AA0 , 6ES7 322-1HH01-0AA0 , or 6ES7 322-1HH0x.

Safe operation due to polarity reversal protection

Channel Nominal Output current - 4 Amps
Channel Maximum Output current - 5 Amps
Sum current per group of 8 - 8 Amps
Potential seperation in groups of 8
More info

Don't forget a 16pnt front connector!
