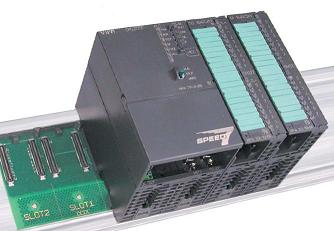

SPEED7 317PN ProfiNet -2Mb
Part No: VIPA 317-4PN12
.
CPU 317PN/ProfiNet – SPEED7 Technology
Programmed by STEP7 from Siemens or WinPLC7 from VIPA
DC 24V
2MByte memory expandable to 8MByte (50% program + 50% data)
MPI interface, 187.5 to 12Mb
MMC slot,
real time clock,
SPEED bus,
8192/8192byte I/O address area
2048 timers (IEC timers unlimited)
2048 Counters (IEC Counters unlimited)
16384 flag byte
Firmware upgrade via MMC
Ethernet interface for PG/OP communication
Profibus-DP master, 12MBaud, up to 126 slaves,
As well as the standard function of the DP Master/slave port the CPU offers an extra mode of switchable RS485 interface for PtP communication with Modbus and other serial protocols.
Extra to the 4 standard Ethernet PG/OP channels that all SPEED7 CPUs offer, this CPU integrates the CP343 Ethernet interface for up to 8 open TCP connections, 128 ProfiNet I/O slaves and 32 PG/OP connections.
ProfiNet, TCP/IP and S7-communication

The SPEED7 CPU's from VIPA are the fastest PLC in the world, more than 10x faster than the Siemens S7-400 CPU's the VIPA SPEED7 can handle the biggest applications. The memory is not fixed in size, it is expandable by purchasing a MMC memory upgrade, so your plant cost life cycle is reduced.
