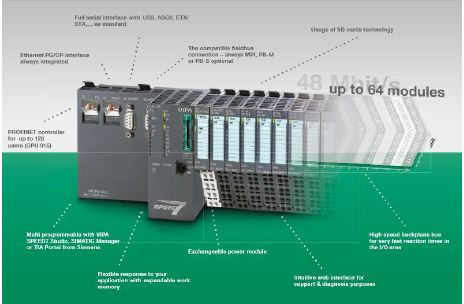

CPU 015 SPEED7
Part No: VIPA 015-CEFPR01
.
CPU 015 - SPEED7 Technology Power supply: DC 24V
Working memory integrated: 256kByte (50% program / 50% data)
Working memory expandable up to: 512kByte (50% program / 50% data)

Interface 1: RJ45: PG/OP-communication

Interface 2: RS485 (isolated): MPI, USS-Master, ASCII, ETX/STX, 3964R, Modbus-Master /-Slave (switchable)

Interface 3: RS485 (isolated): MPI (optional PROFIBUS-SLAVE or PROFIBUS-MASTER)

Interface 4: RJ45: PROFINET-Controller for up to 128 nodes

SD card slot with locking mechanism
Expandable up to 64 SLIO modules pluggable
Programmable via SPEED7 Studio, SIMATIC Manager and TIA Portal
