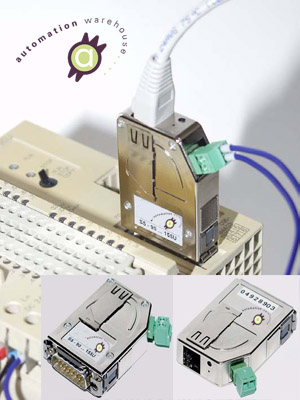

S5 TCP_IP ISO SCADA
Part No: 950-0KBS5-ISO
.
SCADA and HMI connections via RFC1006 ISO on TCP, direct connection to IP address of converter with any SCADA SIemens S7 TCP driver or HMI panel. Programming with Virtual com port - STEP5 and SCADA connection over TCP/IP via the AS511 onboard programming port of 90U, 95U, 100U, 115U, 135U PLC's.

Comes including Virtual com port software

• fastest integration into TCP/IP of every SIMATIC - S5
• No complicated installation, simply plug on PD-interface and communicate
• S7 compatible - ideal for process-visualisation
• GET/PUT and FETCH/WRITE supported
• programming with STEP 5 via Ethernet
• power supply from the S5-PLC or external
• DHCP / Auto-IP supported
• use any OPC Server with Siemens ISO TCP driver or with S5 comm port driver
• direct operation with WinCC via standard ethernet driver

Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 2 watt
Display: status-LED
Handling/Configuration: SHTools software Included, Virtual com port software includedbr> Interfaces: to the PLC: TTY/20mA current loop (S5-LAN passiv, PLC aktiv)
Interfaces: to the PG/PC: 10/100BaseTX RJ45-ethernet jack
Operating temperature: 5 - 55°C
Case: ABS-plastic case
