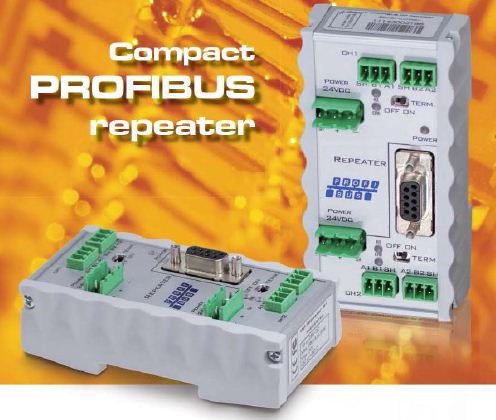

PROFIBUS MPI repeater 1P
Part No: VIPA 973-0AA00
.
Profibus DP and MPI, RS485 repeater for the connection of Profibus/MPI bus systems with max. 31 nodes, max. 12 mbit/s
Works with Siemens Repeater 6ES7 972-0AA01-0xxx either in conjunction with or in place of.

Overcomes normal limitations of existing repeaters by being able to cascade without limitation. Full regeneration of the signal mean unlimited repeaters and network cascade design. The data is constantly monitored for glitches which are then digitally filtered out. Each channel is able to support directly 31 devices.

Redundant 24VDC (19..28VDC) power supply connections
Up to 1200m cable length
All Profibus and MPI speeds supported, 12Mb/s, 6Mb/s, 3Mb/s, 1.5Mb/s, 500Kb/s, 187.5Kb/s, 93.75Kb/s, 45.45Kb/s, 19.2Kb/s, 9.6Kb/s
1 isolate channel with 2 segments
No Profibus address required
Terminating resistors onboard for each channel
DIN Rail mount
Highest protection by short circuit safety in each segment
Low current consumption – 2watt
