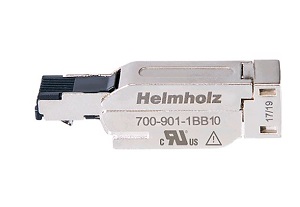

ProfiNet Connector QuickCon
Part No: 700-901-1BB10
.
ProfiNet Connector 180 degree Field Plug, Quick Connect via Insulation displacement, no special tools required.

Cable outlet 180°
Connector type EasyConnect®
Connectible cables PROFINET cable
Cable cross-section 4 x 24 AWG or 22 AWG
Outside diameter 6.2 ... 6.7 mm

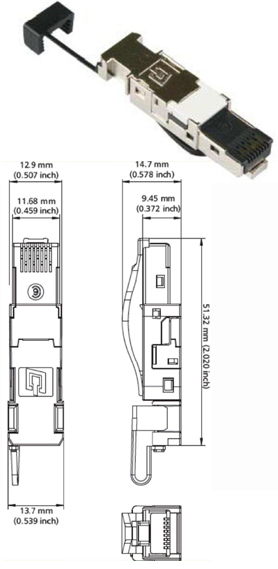

Dimensions (DxWxH) 56.5 x 16.4 x 14.02 mm
Weight Approx. 30 g
Easy assembly, no special tools
Metal Zinc Dia-cast housing
Alternative to VIPA 972-0PN00
