ProfiNet Indust Ethernet Cable
Part No: VIPA 830-0PC00
.

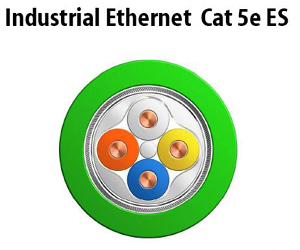

ProfiNet / Industrial Ethernet Cable

100m roll
Bare copper wire - 0.64mm
Insulation of Polyethylene (PE) 1.5mm
4 wires twisted
Plastic tape overlapped
Inner Jacket - Polyvinylchloride (PVC) 3.9mm
Alulaminate foil overlapped, applied longitudinally
Shield braiding of tinned copper wires 0.13mm dia
Coverage about 90%

Jacket
Polyvinylchloride (PVC) GN
Wall thickness about 0.9mm
Electrical Data at 20 degrees
Loop Resistance <= 115 ohm/klm
Signal run time <= 5.3 ns/m
Insulation resitance 1-100MHz >= 500 MOhom*Klm
Surface transfer impedance 10MHz <= 10mOhm/m
Test Voltage (wire/wire/screen rms 50Hz 1min) = 2000V

Electrical requirements to EN 50288-2-1
Flame retardant acc. to IEC 60332-1-2, UL1685(CSA FT4)
Sunlight resitant acc to UL 1581 Sec.1200
Min bending radius allowed - repeated 7.5X dia, single 3X dia
Weight approx 66kgs/Klm
