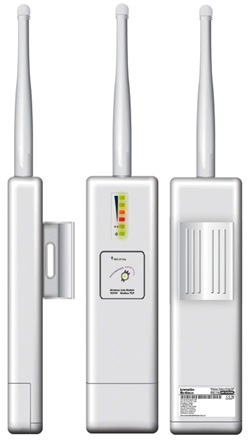

Wireless TCP AP2gxs 24v
Part No: AW BR2GzAPxs
.
Wireless Bridge Omni Access Point 6dBi gain and 600mW 2.4GHz Radio PoE built in, including pole mount

Outdoor/indoor Industrial Quality with Superior Performance
High Transmit output power and high receive sensitivity
Includes custom configuration for your application by us
Up to 400m range - line of site
Layer 2 Transparent Bridge
AP Router mode
AP/WDS and Client /WDS mode
Transmit power 600 mW max.
Wireless standards 802.11 b/g/n
OpenWRT operating system
Processor Specs Atheros MIPS 24KC, 400MHz
Memory Information 32MB SDRAM, 8MB Flash
Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Approvals FCC Part 15.247, IC RS210, C-Tick
RoHS Compliant
Power Supply (12-24V) POE @ 8 Watts. Means only one cable is required for data and power
Integrated directional antenna array
Grounded outdoor Ethernet cable optional (AW Cat5GNDxx) with 24VDC PoE inbuilt
240VAC supply included
Power Method Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature -30C to +70C
WEP, WPA, WPA2-PSK using TKIP or AES, WPA2-EAP using TKIP, MAC filtering
RSSI Wireless link Quality LEDs
Warranty 12 months

NOTE
The ACMA sets the maximum legal Effective Isotropic Radiated Power (EIRP) in Australia as 4000mW (36 dBm). The table below shows the maximum gain antenna that can be legally used with our units.

AP TX Power____Cable Loss_______Antenna Gain______EIRP
(mW)__________(typical)(dB)________max.(dBi)_______(dBm)
60 _________________0________________18___________36
90 _________________0________________16___________36
130 ________________0________________14___________36
200 ________________0________________13___________36
300 ________________0________________11___________36
500 ________________0_________________9___________36
600 ________________0_________________8___________36

It is the installers responsibility to ensure the EIRP is below 4watts for use in Australia
Our Wireless range all have TX power settings so you can ensure this
