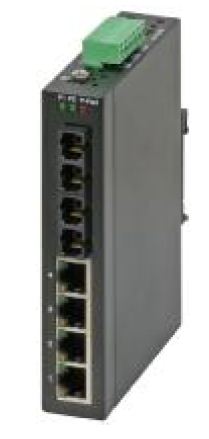

FO 2FX+4TX_MM_SC slimline
Part No: AW 972-TCP202
.
Fibre Optic Ethernet Switch - 4 ports Ethernet + 2 port FO
Slimline, low cost Fibre Optic ethernet switch which can be used in conjunction with our Blue OLM range as well

24VDC dual power supply connections
Fault Relay
DIN rail mount
RJ-45 port support Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
Back-plane (Switching Fabric): 1Gbps
448Kbits Memory Buffer
2K MAC Address Table
Support Wide Operating Temperature (-40°C to 75°C)
Wide-range Redundant Power Design
Power Polarity Reverse Protect
Overload Current Re-settable Fuse Present
Provides broadcast storm protection
Supports 4000 VDC Ethernet ESD protection
Provides EFT protection 3000 VDC for power line
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet
IEEE802.3x Flow Control and Back Pressure
Switch Architecture: Back-plane (Switching Fabric): 1Gbps Packet throughput ability (Full-Duplex): 1.49Mpps @64bytes
Transfer Rate: 14,880pps for Ethernet port
148,800pps for Fast Ethernet port
Memory Buffer: 448Kbits
MAC Address: 2K MAC address table
Connector: 10/100TX: 4 x RJ-45 with auto MDI/MDI-X function
100M fiber: 2 x SC type connector for Singlemode or Multimode type fiber cable
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5 cable
EIA/TIA-568 100-ohm (100m)

Optical Cable:
Multimode: 50/125ìm~62.5/125ìm
Singlemode: 9/125ìm
Available distance: 2km (Multimode)/30km (Singlemode)
Wavelength: 1310nm (Multimode/Singlemode)
Protocol: CSMA/CD
LED Per unit: Power 1 (Green), Power 2 (Green), Fault(Red)
Per port: Link/Activity (Green), Full duplex/Collision (Yellow)
Reserve polarity protection:Present
Overload current protection:Present
