FO 1FX+1TX_MM_ST xs
Part No: AW 972-TCP131
.

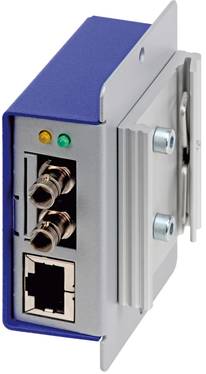

Fibre Optic Ethernet Switch - 1 port Ethernet + 1 port FO
Multimode, ST

eXtra small (xs), low cost Fibre Optic ethernet switch which can be used in conjunction with our Blue OLM range as well

The XS media converters have an extra small housing with a dimension of 80 x 62 x 25 mm.
The flat design of the stainless steel housing offers an extremely high degree of flexibility and safety for all kinds of indoor and outdoor applications.
XS can either be mounted onto a DIN EN rail or fastened onto the wall. A clip is already included in the scope of delivery.


Interface 1x10/100TX and 1x100FX
Media Converter unmanaged
Fiber:
POF 990/1000 ìm
HCS 200/230 ìm
Multimode 50/125 ìm and 62,5/125 ìm
Singlemode 9/125 ìm
Wavelength 650 nm, 850 nm, 1300 nm, 1550 nm, WDM 1300/1500 nm
Distances up to 100 km
Fiber Connectors SMA, ST, SC, SC-BiDi, E-2000, crimpless assembly without connector (clamp lock) for POF
Housing stainless steel, powder-coated LED’s TX-data for each port
