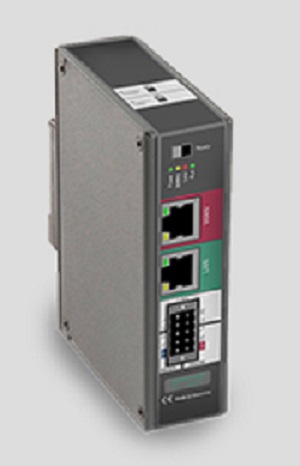

IIoT Router S7 OPC UA
Part No: CC300T
.
IIoT Router with S7 connections

S7-IIoT-Gateway
Start to make IIoT simple by collecting datapoints easily and comfortable by S7-Ethernet (no changes necessary in your S7-CPUs) or by Modbus-TCP.
Collect up to 2.000 data points from up to 100 partner devices every 100ms.
As self contained device this communication gateway does not influence your PLC cycle time.
Datapoints are logged and provided to OPC UA-clients and all are configured without PC-software because of the integrated Web Configurator as required for industry 4.0.
The integrated Node-RED offers additional functions like MQTT, SMTP, FTP or twittering, visualising, reading etc. by its own nodes. Thousands of community based Node-RED applications available. (Support not provided on Node-RED third party apps)

OPC UA server
JavaScript
Node-RED
COM1 - RS232
COM2 - RS485
Modbus-PTP (on request)
Modbus-RTU (on request)
Ethernet 10/100 MBit
S7-communications, TCP, UDP, Modbus-TCP
MQTT, SMTP client, HTTP (more by Node-RED)
CanOPEN
