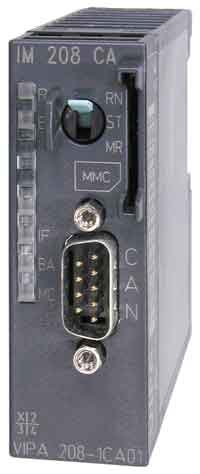

IM208 CANBUS Master
Part No: VIPA 208-1CA00
.
IM208 CanBus master for 200V PLC system.

Features
· 125 CAN slaves can be coupled on a CANopen master
· Project engineering with WinCoCT from VIPA (included with card)
· Diagnostic capable
· 40 Transmit PDOs
· 40 Receive PDOs
· PDO linking
· PDO mapping
· 1 SDO as server, 127 SDO as client
· Emergency object
· NMT object
· Node guarding, heartbeat
· In- / Output area 0x6xxx each max 64Bytes
· In- / Output area 0xAxxx each max 320Bytes
Transfer rate 10kBaud upto 1MBaud
Total length without repeater 1000m at 50kBaud
Total number of users 127 stations (depending on master allocation)
Combination with periphery modules max. number slaves = 125
max. number TxPDOs = 40
max. number RxPDOs = 40
max. number Input bytes = 384
max. number Output bytes = 384
Measures and weight Dimensions in mm (width, heigth, depth) 25x76x76
Weight = 110g
