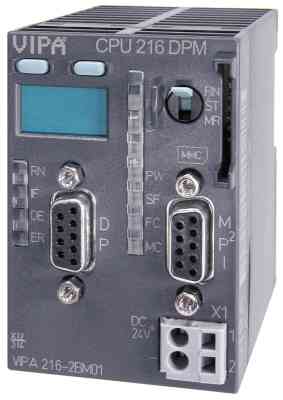

CPU 216DPM 128K (STEP7)
Part No: VIPA 216-2BM02
.
CPU 216, with PROFIBUS DP Master interface 128kByte Memory, Intern. Flash EPROM MMC-Slot. Clock
192K Load Memory
No MMC required
Datablocks - 2047
Function Blocks - 1024
Function Charts - 1024
Scan Time Bit - 0.18micro sec
S7 Counters - 256
S7 Timers - 256
IEC Timers - Yes
Flags - 8192 bits
I/O address - 1kByte / 1kByte
Process image - 128 Bytes
Modules per line - 32
Modules total (local) - 32
MPI Port
DP Port - optional IM208
Programmable with STEP®7 from Siemens
