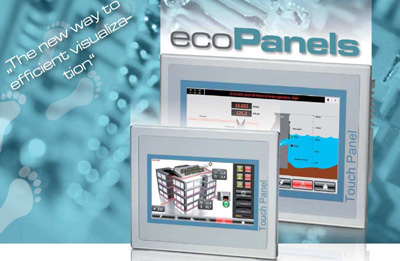

TP 607LC ECO+ Movicon
Part No: VIPA 62H-MHC0-DH
.
Touch Panel TP 607LC ECO, 7“ TFT color, RS485, RS232, RS422, USB-A, Ethernet RJ45 10/100Mb, (MPI/Profibus-DP optional), incl. Windows CE 6.0 Core and Runtime Movicon11 Basic.

800x480 pixel
Wide Screen 65536 colours, LED back lighting
24VDC, 11...36V range
212 x 156 x 57mm
Cutout - 197 x 141mm identical to VIPA 605, 606 and Siemens TP170, MP177
Cortex A8 1000MHz Processor
256 MByte Flash
128MByte RAM
MMC/SDCardSlot
Horizontal or vertical display setting
RS232, RS485, RS422, (MPI, Profibus-DP-Slave – optional), Ethernet, USB.A on board
Windows CE 6.0 Core,
Movicon11 Basic Runtime
Plastic Case
Industrial protection IP65 (front side)
Movicon11 Real Flexible XML and Web Services technology
Animated templates with appealing graphic functions
Graphic interface with standardised XP-object library
Recipe administration based on related data bases
Effective alarm management
Limited Historical event archive based on TXT and XML
SMS and E-Mail administration
Dynamic trends, Historical only whilst screen open
Conformity to FDA 21 CFR part 11
Passwords with 1.024 user levels and 16 access areas
Complete VBA support
Limited Data Logger via TXT and XML
Extensive driver library
Comprehensive symbol library
Importing function for STEP®7 from Siemens for Symbol-Data-Format (SDF)


Replaces VIPA 62H-MDC0-DH
