VIPA OP03
Part No: VIPA 603-1OP00
.

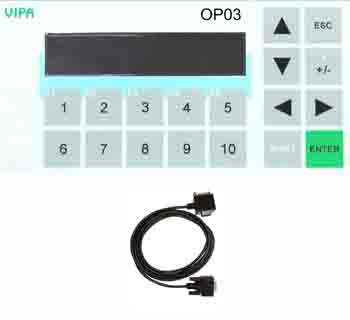

OP03 Text Operator Panel, LCD, 2 x 20 charaters, complete with PLC to HMI cable 2M with PG interface so Programming of PLC or HMI can be done without removing the cable from the PLC.

Comes with a MPI connection for S7-300, S7-400 Programming port from Siemens, and VIPA 100V, 200V 300V,400V, 500V CPU's MPI port

Display with 2x20 characters
256kByte user memory
4096 variables
MPI interface for online project engineering, PLC CPU connection and Firmware update via Green Cable
Visualisation via MPI of max 2 CPU's
Menu's and input text in 5 languages
PLC Timer and Counter values also accessable for reading and changing
Display of message texts

Programmed by EITHER VIPA OP-Manager or Siemens Protool/lite
