VIPA TD03
Part No: VIPA 603-1TD00
.

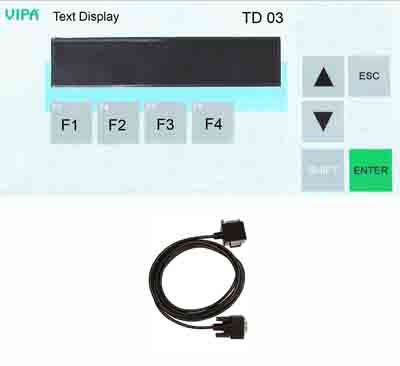

TD03 Text Display Panel, LCD, 2 x 20 charaters, complete with PLC to HMI cable 2M with PG interface so Programming of PLC can be done without removing the cable from the PLC
Includes TD Wizard for programming
TD Wizard completely programs the PLC CPU for both Siemens and VIPA as below
All configuration resides in the PLC CPU, S7-300, S7-400 from Siemens or any S7 CPU from VIPA, 100V, 200V, 300V, 300S, 500S.
TD03 panels can be exchanged without need for program downloading, just plug the new one into the PLC CPU and it will start working.
Comes with 4 function keys built in and 3 navigation keys
