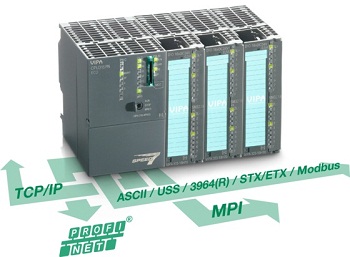

| Note: indicative image may not reflect actual product |
| ® STEP, S7-200, S7-300, S7-400, WinCC, SIMATIC are registered trademarks of Siemens |
Part Number:
VIPA 315-4PN33
Description:
CPU 315PN ECO / ProfiNet – SPEED7 Technology
Programmed by TIA Portal, STEP7 from Siemens, WinPLC7 from VIPA
DC 24V
512KByte memory not expandable (50% program + 50% data)
MPI interface, 187.5 to 12Mb
MMC slot,
real time clock,
2048/2048byte I/O address area
512 timers (IEC timers unlimited)
512 Counters (IEC Counters unlimited)
8192 flag byte
Firmware upgrade via MMC
2 x Ethernet interface, one for PG/OP communication, plus one ProfiNet interface
Point to Point interface, the CPU offers an extra port of switchable RS485 interface for PtP communication with Modbus RTU Master and Slave, USS, 3964R, STX/ETX and ASCII.
Extra to the 4 standard Ethernet PG/OP channels that all SPEED7 CPUs offer, this CPU integrates the CP343 Ethernet interface for up to 8 open TCP connections, 128 ProfiNet I/O slaves and 32 PG/OP connections.
ProfiNet, TCP/IP and S7-communication
The SPEED7 CPU's from VIPA are the fastest PLC in the world, more than 10x faster than the Siemens S7-400 CPU's the VIPA SPEED7 can handle the biggest applications. The memory is not fixed in size, it is expandable by purchasing a MMC memory upgrade, so your plant cost life cycle is reduced.
