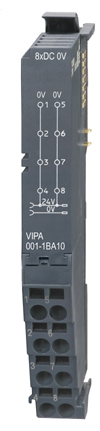

| Note: indicative image may not reflect actual product |
| ® STEP, S7-200, S7-300, S7-400, WinCC, SIMATIC are registered trademarks of Siemens |
Part Number:
VIPA 001-1BA10
Description:
CM 001 - Potential distributor terminal module
8xDC 0V clamps
Terminal modules are passive modules for 2- or 3-wire installations, whose contacts are vertically electrically connected internally. Within the module the backplane bus feeds-through. The module does not have any module identification, but is considered at the maximum number of the modules.
Through the application of the terminal modules, marshalling terminals external to the rack can be replaced and devices like proximity switchs and sensors can be directly wired to the SLIO to connect directly the 24VDC, 0VDC and input / output wire. The wiring is done via timesaving and secure cage clamp technique.
The terminal modules are fixed on the mounting surface by means of a 35mm DIN rail.
Features
+ Maintenance-free cage clamp technique
+ Backplane bus feed-through
+ Max. terminal voltage 10A
+ Potential separation 500Veff (field voltage to bus)
+ Mounting on a 35mm DIN rail
