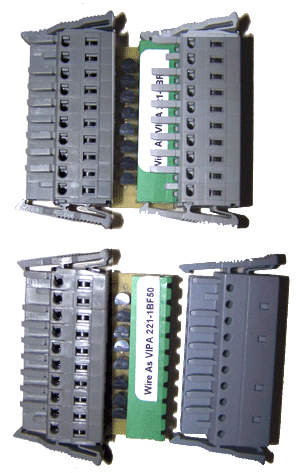

| Note: indicative image may not reflect actual product |
| ® STEP, S7-200, S7-300, S7-400, WinCC, SIMATIC are registered trademarks of Siemens |
Part Number:
AW 221-1BF50Conv
Description:
These converters are used to plug onto a 8 x 24VDC digital input module 221-1BF00 or 221-1BF01 to allow for NPN inputs.
These converters use the standard VIPA front connectors, so you can remove the existing connector, plug this converter onto the 221-1BF00/01 and plug into the back of the converter with the original VIPA front connector.
24VDC NPN inputs are then available.
Pullup voltage with 3mA source current is provided.
A zero, or M or (0) input causes the input module to trigger a 1 to the PLC.
