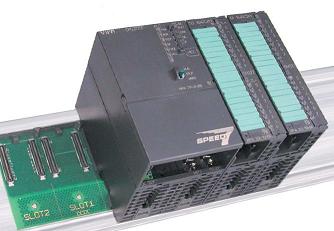

| Note: indicative image may not reflect actual product |
| ® STEP, S7-200, S7-300, S7-400, WinCC, SIMATIC are registered trademarks of Siemens |
Part Number:
VIPA 315-4NE12
Description:
CPU 315SN/NET – SPEED7 Technology
Programmed by STEP7 from Siemens or WinPLC7 from VIPA
DC 24V
1MByte memory expandable to 2MByte (50% program + 50% data)
MPI interface, 187.5 to 12Mb
MMC slot,
real time clock,
2048/2048byte I/O address area
512 timers (IEC timers unlimited)
512 Counters (IEC Counters unlimited)
8192 flag byte
Firmware upgrade via MMC
Ethernet interface for PG/OP communication
Profibus-DP master, 12MBaud, up to 126 slaves,
As well as the standard function of the DP Master/slave port the CPU 315-4NE11 offers a extra mode of switchable RS485 interface for PtP communication with Modbus and other serial protocols.
Extra to the 4 standard Ethernet PG/OP channels that all SPEED7 CPUs offer, this CPU 315-4NE11 integrates the CP343 Ethernet interface for up to 8 TCP connections and 32 PG/OP connections.
TCP/IP and S7-communication
The new SPEED7 CPU's from VIPA are the fastest PLC in the world, more than 10x faster than the Siemens S7-400 CPU's the VIPA SPEED7 can handle the biggest applications. The memory is not fixed in size, it is expandable by purchasing a MMC memory upgrade, so your plant cost life cycle is reduced.
