TB20 Digital I/O
DI 16x24VDC
DI 16x24VDC NPN
DI 8x24VDC
DO 16x24VDC
DO 4xRelay 5A SPDT
DO 8x24VDC
Automation Warehouse
Ph: 0734880177
email: click
|
|
 |
 |
| Note: indicative image may not reflect actual product |
| ® STEP, S7-200, S7-300, S7-400, WinCC, SIMATIC are registered trademarks of Siemens |
Part Number:
600-210-0DP21
Description:

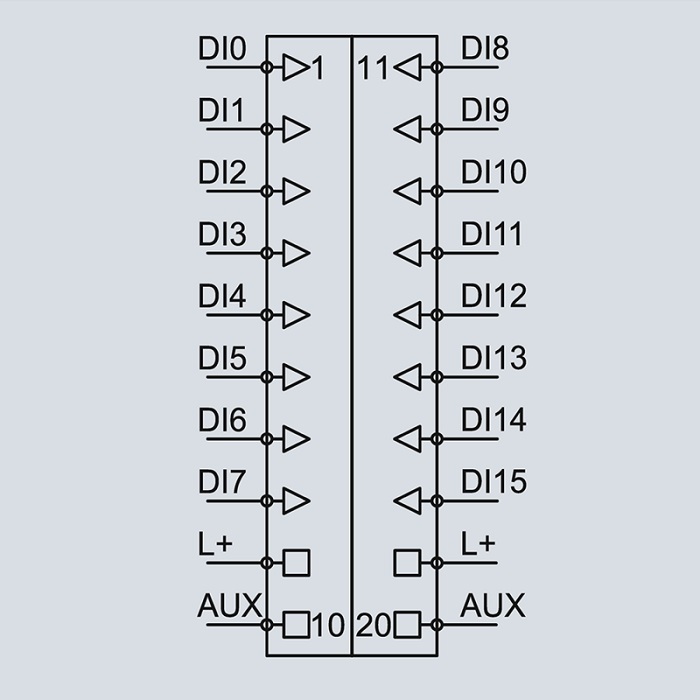

Digital input module - DI 16 x 24 VDC, NPN
Characteristics
• 16 inputs, electrically isolated from the backplane bus
• 0 VDC input voltage = 1 in PLC (NPN)
• Can accommodate two-wire proximity sensors, Input pulled up sourcing current
• A blue LED indicates the module`s operating status
• Green LEDs (one for each input) indicate the inputs’ states
Resource Download
Manual
http://www.automationwarehouse.com.au/
manuals/helmholz/TB20_Modules.pdf
| Login for Pricing |
