Part Number:
600-180-1AA11
Description:
TB20-C ProfiNet Slave head for TB20 I/O system
Includes internal Power module
Up to 64 modules per rack (Siemens ET200S only allows 12)
Hotswap module capable
Free Software Toolbox for simulation and diagnosis in addition to information available from Siemens STEP7 / TIA Portal, or WinPLC7 software.
Detailed status indication of all modules in use in the system
Fault Tracking and fault repair
Galvanic isolation between fieldbus and backplane bus
TB20-C, Bus Coupler PROFINET IO
The PROFINET bus coupler is designed to connect a PROFINET bus to TB20 peripheral modules.
A functioning TB20 configuration will always require a bus coupler and at least one peripheral module, but can accommodate up to 63 modules of any kind connected in series with the bus coupler. The bus coupler supports hot-plug for replacing modules during operation.
In addition, it will recognize all connected peripheral modules and assign each module the corresponding inputs/outputs from the process image table.
PROFINET bus coupler with Power over Ethernet (PoE):
A PROFINET bus coupler version featuring Power over Ethernet (PoE) will soon be available as well.
This bus coupler will make it possible to run a distributed I/O station with nothing more than an Ethernet cable.
Note:
The 24 V power supply connector, the final bus cover, and the base module are included as standard.
TB20 ToolBox makes it easy to methodically design TB20 systems. Integrated terminal mapping, system width calculations, and Current-carrying capacity monitoring all make it possible to quickly design systems without making any mistakes.

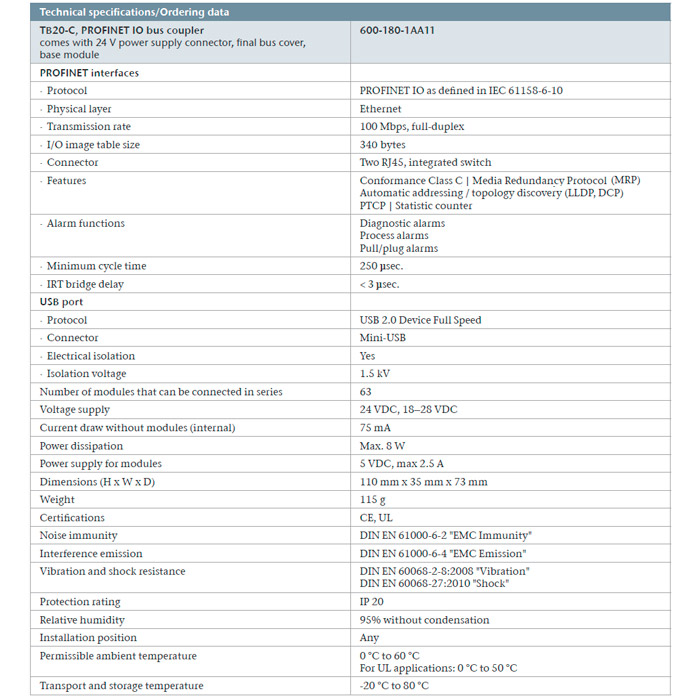

Characteristics
I/O device as per PROFINET IO (61158-6-10)
Integrated two-port switch
Full-duplex transmission rate of 100 Mbps
340 bytes of I/O data
Up to 63 peripheral modules
Modules can be replaced during operation (hot-plug)
Conformance Class C
Media Redundancy Protocol (MRP)
Automatic addressing / hot-swapping (LLDP, DCP)
Topology discovery
I&M data
Diagnostic alarms, process alarms, pull/plug alarms
Integration using GSDML file
24 VDC power supply
Integrated power supply unit for powering peripheral modules (2.5 A)
Supplies the systems I/O voltage (24 VDC)
7 LEDs, two of them bi-color
USB device port for online diagnostics, configuring parameters, setup, and firmware updates with "TB20 ToolBox"
TB20 ToolBox simulation for setting up the I/O system without a higher-level controller in order to test the system`s operation (I/O check)
Concealed "factory reset" switch for restoring the module to its factory settings
